Obsidian ST

Obsidian ST

Regular price $2,199.00
Regular price $2,999.00 Sale price $2,199.00
Add to cart
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Tires
4.0” Fat Tires
Motor Peak Power
1460W
SENSOR
Torque Sensor
Top Speed
28 MPH
Range
Up To 80 Miles
Payload Capability
350 Lbs
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes
New Arrival

show more

Power Station E-Bike

show more

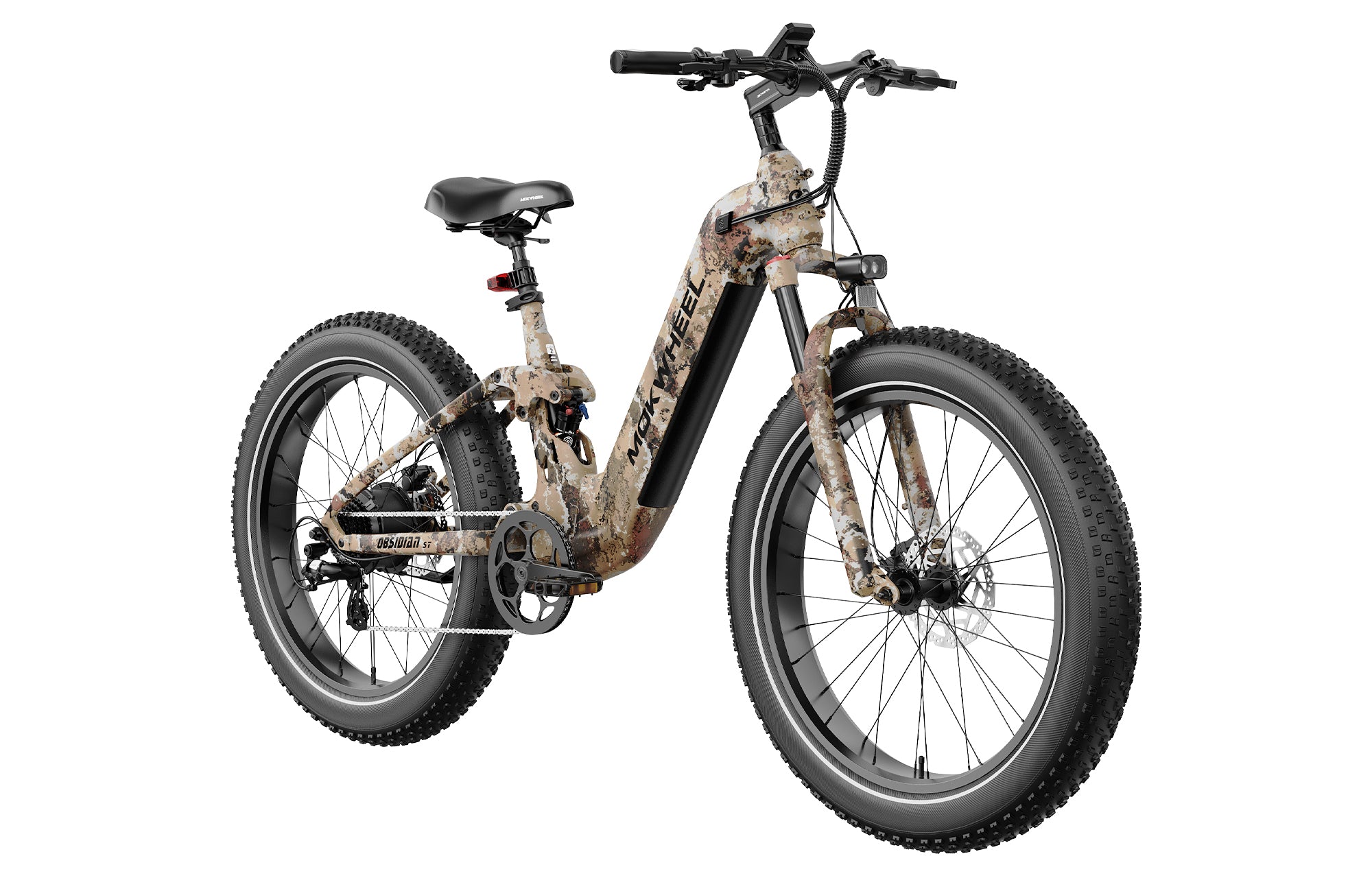

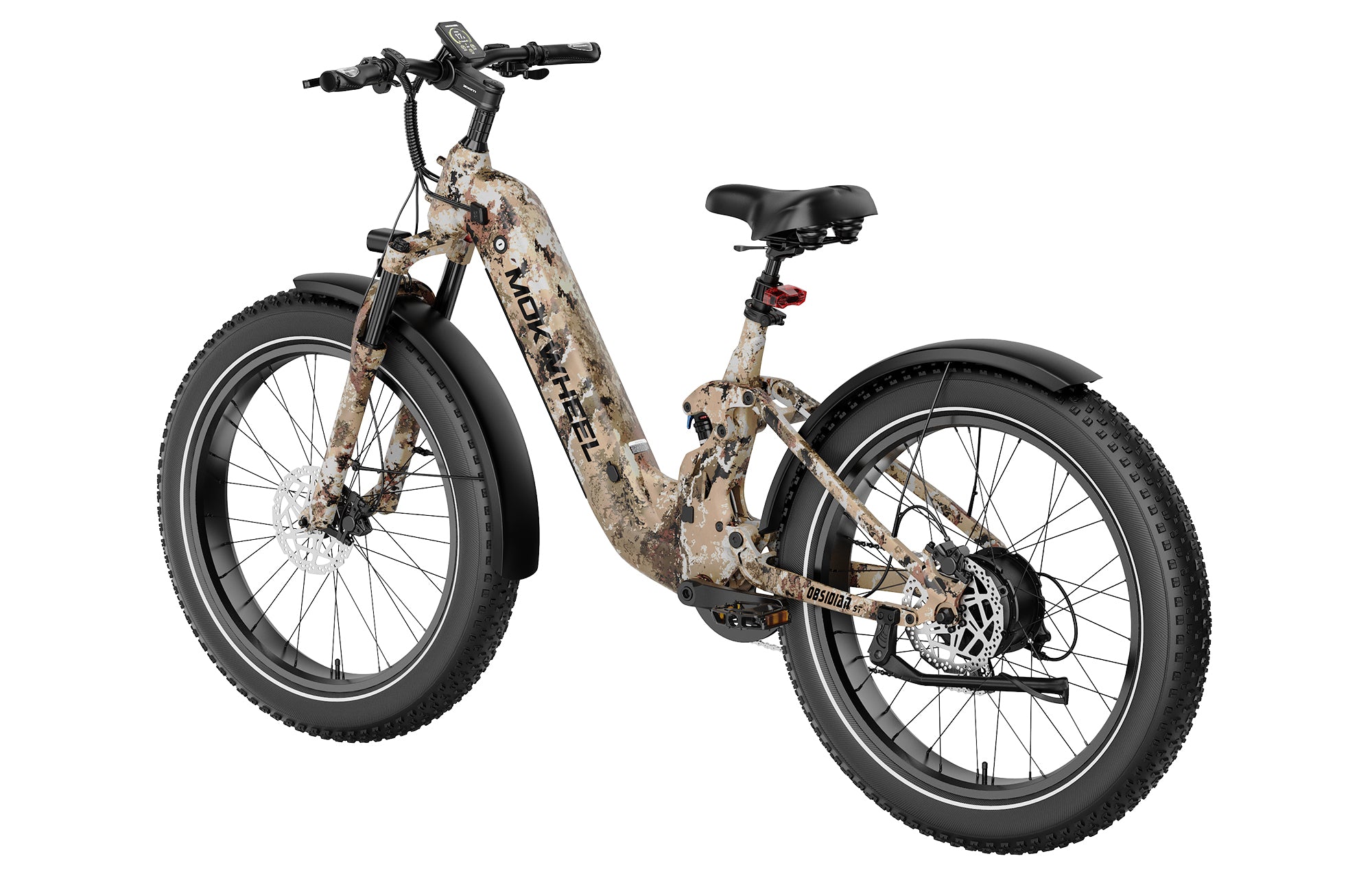

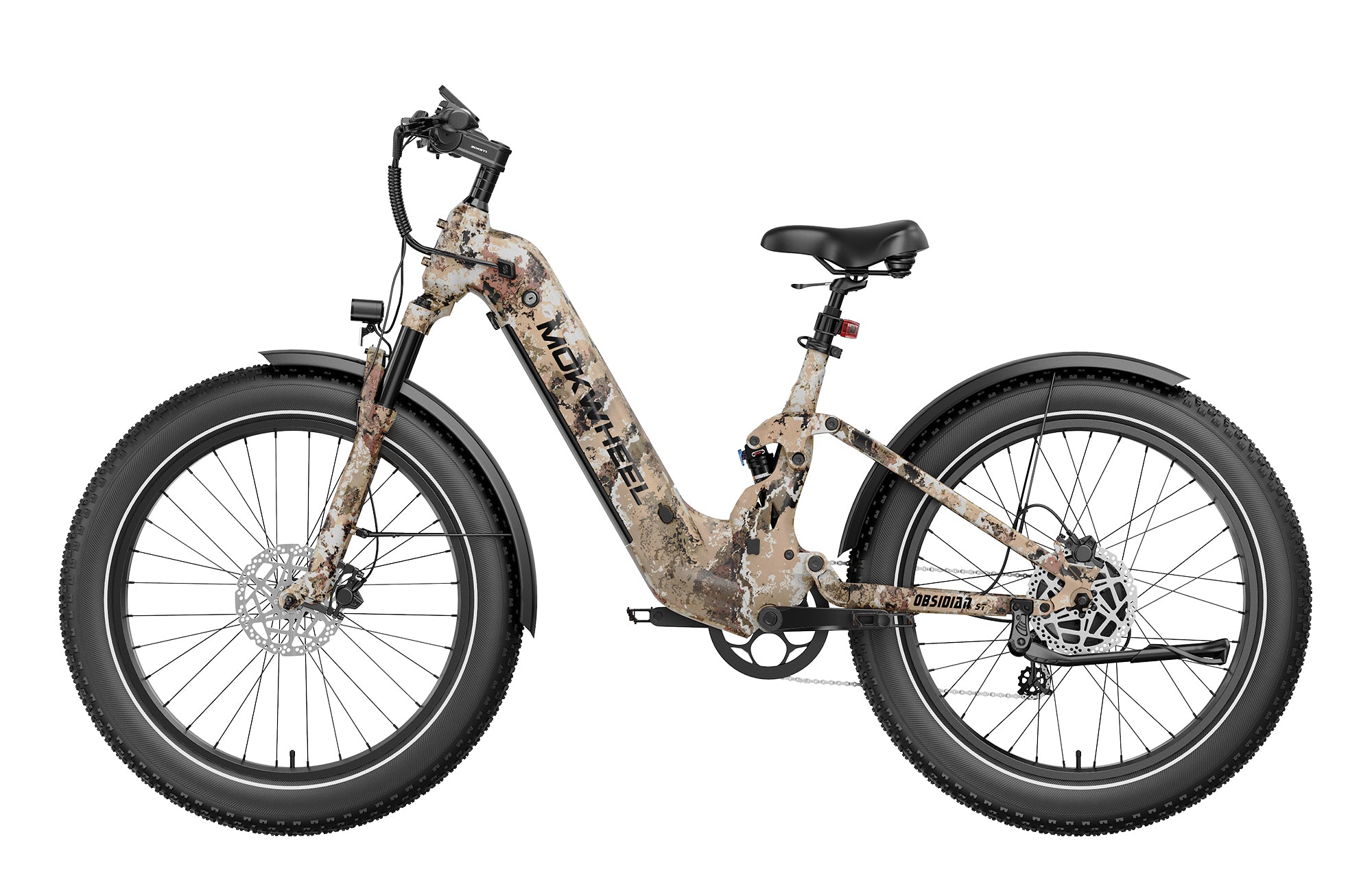

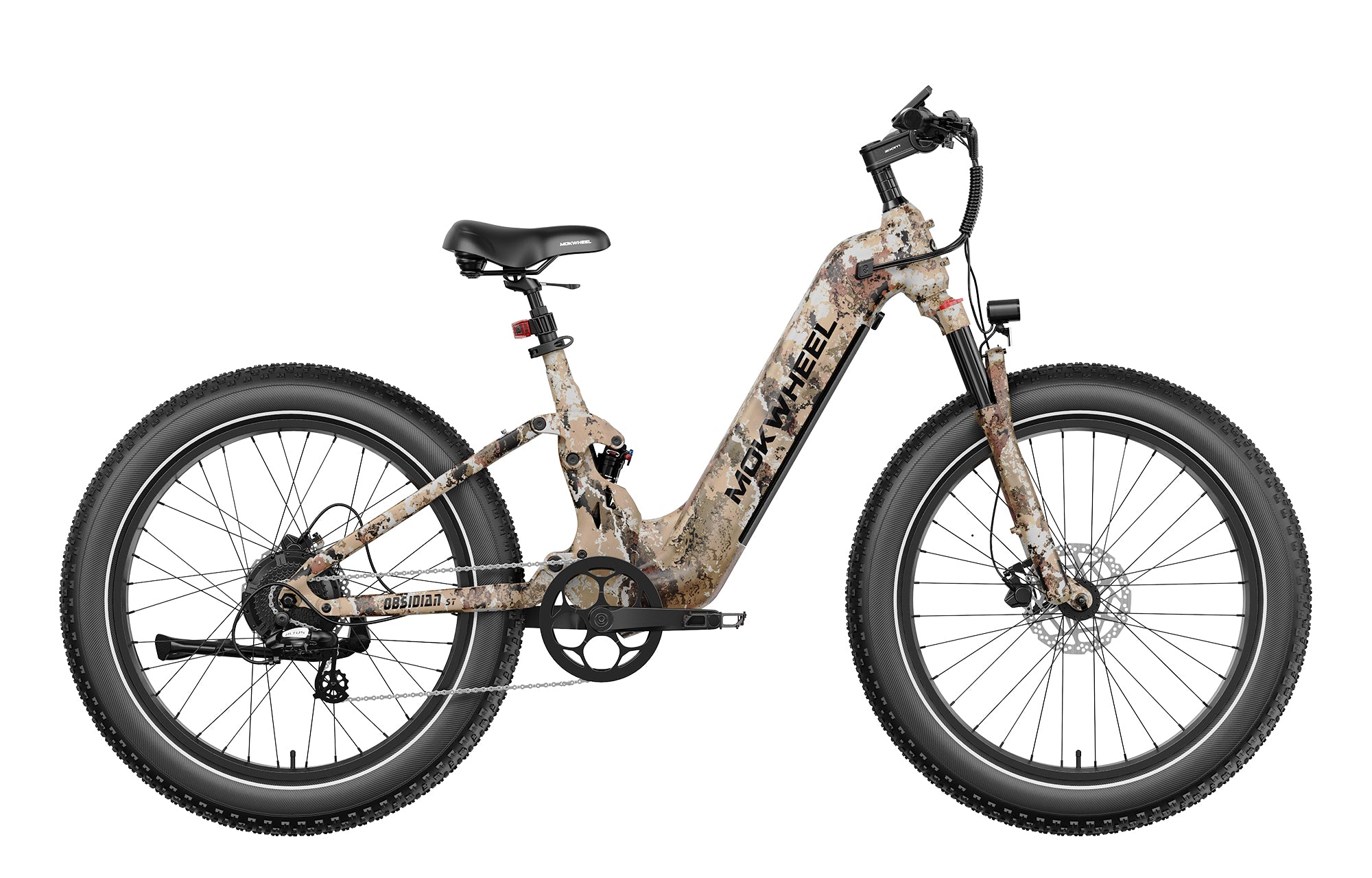

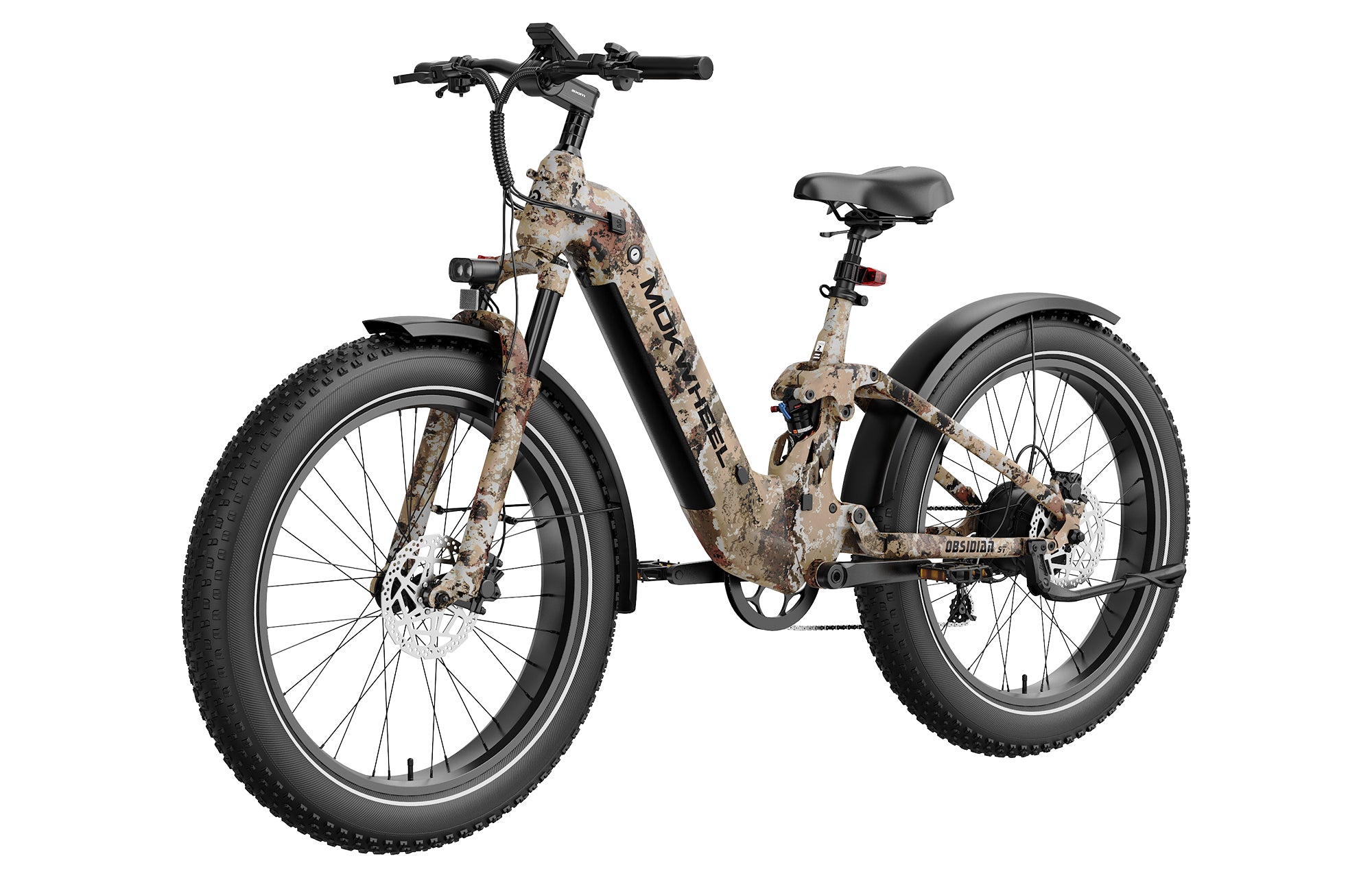

Now equipped with a two-stage adjustable seat for personalized comfort, offering exceptional adaptability for riders of all heights, and a 38RC shock absorber that allows you to freely adjust the resistance to better suit your needs. The Obsidian ST ensures a smooth and comfortable ride on any terrain.

Regular price $2,199.00
Regular price $2,999.00 Sale price $2,199.00
*Ships Within 2 Business Days In stock
Color DesertCamo
Quantity

Free Accessories

Full Fender (Obsidian)

$99.99

Free

Free Gift

Select FREE package!!

Choose One Free Gift*Battery out of Stock ETA: 11/11/2024
Deluxe Accessory Pack
Deluxe Accessory Pack
FREE $599.00
Battery (Basalt Series & Scoria & Obsidian Series)
Battery (Basalt Series & Scoria & Obsidian Series)
FREE $599.00
Inverter - Gift
Inverter - Gift
FREE $599.00

Buy 2 E-bikes and Get an Extra Free Gift🎉

Purchase any two E-bikes and choose the following accessories for FREE

Mokwheel Hitch Rack - Gift
FREE $499.99

Size & Fit

Size & Fit

Obsidian ST comes in 1 size to suit most adults

Standard : 5'6" - 6'8"

Frame Size

Reach
Standover Height
Wheelbase
Min Saddle Height
Max Saddle Height
Total Length
Handlebar Height

Standard

24.8"
19"
51"
35.4"
41.3"
79.9"
43.7"

Technical

Technical

Battery48V 19.6Ah UL safety certification
Charger48V 3.0A
Speed ClassUp to 28 mph on Level 5 PAS
Weight77 lbs
Range60~80 miles
MotorRated Power: 1000W

Peak Power: 1460W

Torque: 105Nm+

Payload Capacity350 lbs

Performance

Performance

Tires26x4.0" Puncture Resistant Fat Tire
DisplayLED Integrated
BrakesTEKTRO Hydraulic Disc Brakes
ChainKMC Stainless Chain
Crank Set44T DOUBLE-SIDED ALUMINUM ALLOY CRANKSET
Derailleur8 Speed Shimano Rear Derailleur
Front Fork130mm Adjustable Suspension
Frame6061 Aluminum Alloy with Internal Battery
GearingShimano 8-Speed
ThrottleThumb Throttle
HandlebarAluminum Alloy, 720mm
Kickstand6061 Aluminum Kickstand
RimsAluminum Alloy
SaddleHydraulic Two-Stage Adjustable Seat
SensorTorque Sensors
SpokesFront 45#x12Gx248mm and Rear 45#×12G×216mm
Tires
4.0” Fat Tires
Motor Peak Power
1460W
SENSOR
Torque Sensor
Top Speed
28 MPH
Range
Up To 80 Miles
Payload Capability
350 Lbs

Free Shipping

Free shipping on all online

15-Day Returns

For All Mokwheel bikes

2-Year Warranty

Two Year Limited Warranty

Explore performance

38RC Adjustable Shock

38RC Adjustable Shock

38RC Dual Air Valve Shock Absorber with Resistance Adjustment: Easily adjust resistance with the blue knob to fine-tune your ride, ensuring smoother handling and enhanced comfort on any terrain.
Hydraulic Seat Adjustment

Hydraulic Seat Adjustment

Enjoy the flexibility of customizing your seat height effortlessly. With hydraulic adjustment, you can fine-tune your seating position for optimal comfort and performance, ensuring a perfect fit for every rider, no matter the terrain.
1000W High-Power Motor

1000W High-Power Motor

Experience unmatched acceleration and hill-climbing ability with this powerful 1000W motor, designed for those who demand top performance on any terrain.
LED Color Display

LED Color Display

Stay informed and in control with our vibrant LED color display, offering clear and easy-to-read information on speed, battery life, and more at a glance.
High-Power Semi-Integrated Battery

High-Power Semi-Integrated Battery

This 48V 940W battery combines power with a sleek design, offering extended range and seamless frame integration for a cleaner look and better protection. UL certified for top performance, safety, and reliability.
Hydraulic Braking System

Hydraulic Braking System

Enjoy precise and reliable stopping power with our hydraulic brakes, offering superior control and safety, even in challenging conditions.
Smooth Gear Transitions

Smooth Gear Transitions

Our 8-speed derailleur is engineered to provide effortless and seamless gear transitions. Say goodbye to chain drops and frustrating shifts – this derailleur ensures you're always in the right gear
Impact-free Ride

Impact-free Ride

Equipped with advanced damping and spring systems to absorb shocks and vibrations, ensuring a smooth and controlled ride. The front fork features 130mm of travel and can be easily adjusted to match your riding style and terrain.
Seamless Acceleration

Seamless Acceleration

Our thumb throttle provides smooth and precise control over your electric bike's power output. Effortlessly accelerate and maintain your desired speed with a simple push of your thumb.
Dual-Bulb Brilliance

Dual-Bulb Brilliance

Illuminate your path like never before with not one, but two high-intensity bulbs. This headlight offers double the brightness, casting a powerful beam that cuts through darkness
Exceptional Power Transfer

Exceptional Power Transfer

Our 44T crankset is engineered for maximum power transfer from your legs to the pedals, with perfect synergy on all PAS levels.
Precision Control

Precision Control

Sleek and compact design not only complements aesthetics but also reduces clutter on your handlebars, providing a clean and unobstructed riding experience
Superior Comfort

Superior Comfort

The soft and supple leather offers a comfortable and cushioned grip, reducing fatigue during long rides and ensuring a pleasant riding experience
Mokwheel Ebikes
Mokwheel Ebikes
Mokwheel Ebikes

Tailor-Fit Comfort. For Every Rider.

4.9ft

6ftBike inseam

Slide the scale for your bike inseam measurement

Obsidian ST

You will be able to pedal and stand over the frame comfortably.

Obsidian ST

You may experience discomfort on extended riding periods.

Standard
Standard
Standard
Size & Fit

Frame Size

Reach
Standover Height
Wheelbase
Min Saddle Height
Max Saddle Height
Total Length
Handlebar Height

Standard

24.8"
19"
51"
35.4"
41.3"
79.9"
43.7"
Technical
Battery48V 19.6Ah UL safety certification
Charger48V 3.0A
Speed ClassUp to 28 mph on Level 5 PAS
Weight77 lbs
Range60~80miles
MotorRated Power: 1000W

Peak Power: 1460W

Torque: 105Nm+

Payload Capacity350 lbs
Performance
Tires26x4.0" Puncture Resistant Fat Tire
DisplayLED Integrated
BrakesTEKTRO Hydraulic Disc Brakes
ChainKMC Stainless Chain
Crank Set44T DOUBLE-SIDED ALUMINUM ALLOY CRANKSET
Derailleur8 Speed Shimano Rear Derailleur
Front Fork130mm Adjustable Suspension
Frame6061 Aluminum Alloy with Internal Battery
GearingShimano 8-Speed
ThrottleThumb Throttle
HandlebarAluminum Alloy 31.8mm, 720mm
Kickstand6061 Aluminum Kickstand
RimsAluminum Alloy
SaddleHydraulic Two-Stage Adjustable Seat
SensorTorque Sensors
SpokesFront 45#x12Gx248mm and Rear 45#×12G×216mm
FAQ
How long until I receive my bike?

The order will be process in 48 business hours. Once the order has shipped, a shipping confirmation email will be sent to your email. We use FedEx or UPS for shipping. Please allow 2~7 business days for the shipment to arrive to your designated location. Any delivery dates provided by Mokwheel are estimates.

Do I need a license for riding Ebike?

No, you don’t need a license for riding Ebike. Please read Safety Instructions carefully for your safety.

How do I charge my battery?

You can check the Battery and Charger of our E-BIKE USER MANUAL. The methods are listed in the manual with more detail.

How to find the Ebike that fits me?

You can check our Compare Models for the differential of our Ebike.

How to clean my Ebike?

We recommended you to take off the battery. Otherwise, you can clean the E-bike as the normal bike.

What accessories come with Ebike?

We send a wrench, bicycle pump and front full fender, with our Ebike.
