Overview
Description
*Compatibility: Suitable for Power Station Ebikes (Basalt Series & Scoria & Obsidian Series)

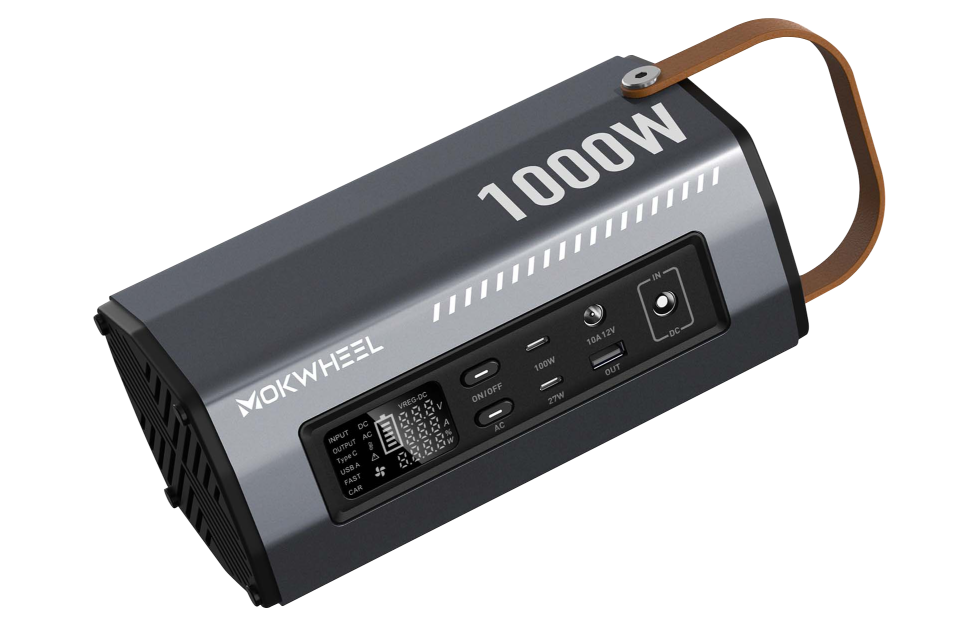

Aluminum Alloy Shell & LED: 1000W modified sine wave inverter adopts an aluminum alloy shell to resist heat, cold, and corrosion, which is not easy to rust. The LED indicator light is convenient for users to master the power inverter working promptly.

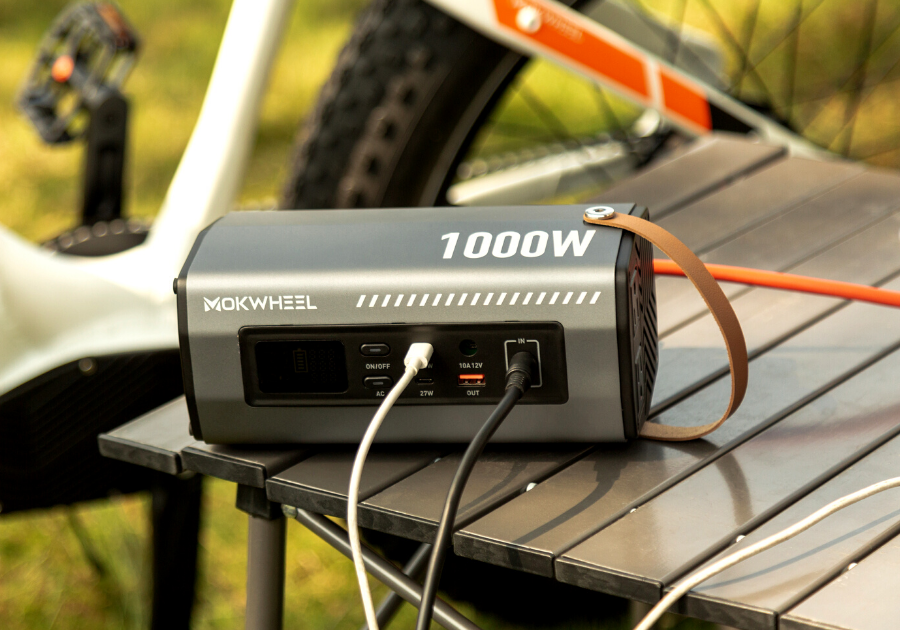

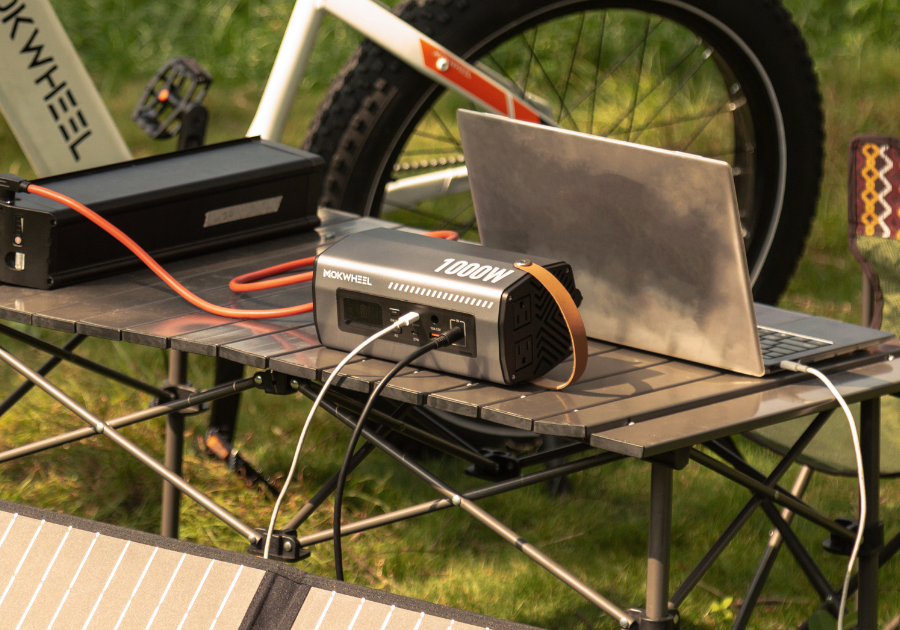

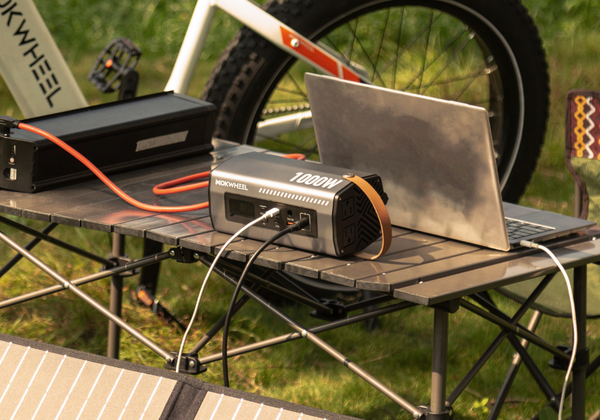

This modified sine wave inverter is ideal for Mokwheel Electric bikes, cell phone, laptop, electric light, digital camera, breast pump, TV, electrical tools, microwaves, etc. Much more convenient for being used as electric bikes and home power supply.
There are six main protection measures for an inverter: short circuit protection, over-temperature protection, over-load protection, low voltage protection, over-voltage protection, reverse polarity protection.
The LED indicators facilitate the user to observe the machine's regular operation more directly: charge, full, fault, power. An Independent power switch is easy to control the inverter.
A built-in silent cooling fan will effectively rotate at a different speed according to power load and temperature. Fan net cover prevents small animals from flying into the machine.
Type-C1 Output parameters: 5V/3A 9V/3A 12V/3A 15V/3A 20V/5A 100W Max.
Type-C2 Output parameters: 5V/3A 9V/3A 12V/2.45A 27 Max.
USB-A Output parameters: 5V/3A 9V/2A 12V/1.5A 18W Max.
DC5521 Output parameters: 12V/10A.
DC7909 Input Charging: 18-54.6V/6A (Solar charging with the same port).
External power supply, airline plug (custom input port): 54.6V/30A.
AC Output (×2): Total power1000W (Peak 1500W) (US/Japanese).
Features
A 1000W inverter
Airline plug adapter cable 750mm long (black double male)
Instruction manual, user guide, warranty card
Basic specifications
Net weight: About 1.6KG
Product Size: L214mm*W116.5mm*H109.6mm
